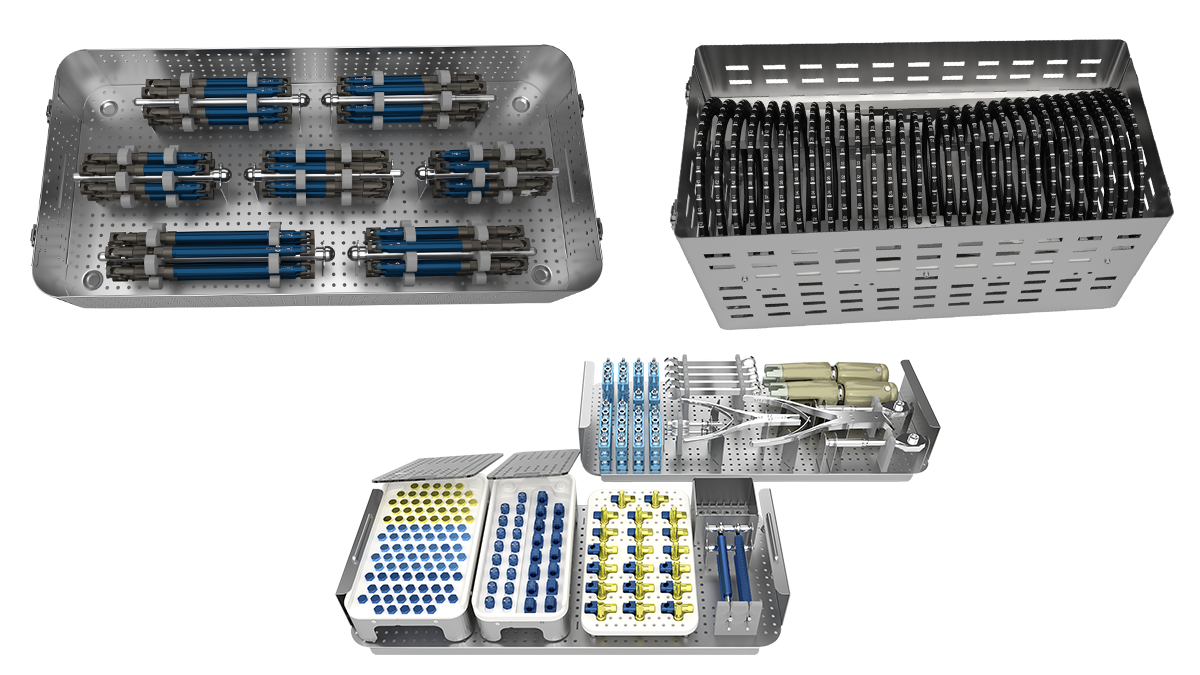

Response Ortho Computer-Assisted External Fixator System kit
Correction system for fractures, limb lengthening, non-unions, malunions and pseudo arthrosis of humerus, ulna, radius, femur, tibia, fibula
precise treatment of open and closed fractures, limb lengthening, non-unions, malunions and pseudo arthrosis of long bones.
Smart Correction® Response Ortho Computer Assisted Circular Hexapod Fixator
Smart Correction® Response Ortho deformity correction tool
Smart Correction for deformity, fractures, non-unions, malunions and pseudo arthrosis
Computer guided deformity correction fractures, limb lengthening, non-unions, malunions and pseudo arthrosis.
Response Ortho Computer-Assisted External Fixator System kit
Correction system for fractures, limb lengthening, non-unions, malunions and pseudo arthrosis of humerus, ulna, radius, femur, tibia, fibula
precise treatment of open and closed fractures, limb lengthening, non-unions, malunions and pseudo arthrosis of long bones.

Smart Correction® Response Ortho Computer Assisted Circular Hexapod Fixator

£0.00

Computer guided deformity correction for the treatment of open and closed fractures, limb lengthening, non-unions, malunions and pseudo arthrosis of long bones.

Quantity:
Add To Cart

Computer guided deformity correction for the treatment of open and closed fractures, limb lengthening, non-unions, malunions and pseudo arthrosis of long bones.

Computer guided deformity correction for the treatment of open and closed fractures, limb lengthening, non-unions, malunions and pseudo arthrosis of long bones.

Smart Correction® is a copyrighted software-based deformity correction and fracture reduction tool designed for the treatment of open and closed fractures, limb lengthening, non-unions, malunions and pseudo arthrosis of long bones.

The frame is comprised of rings, struts, wire and screw clamps, articular hinge and variety of wire and screws. Advanced materials used in the external fixation system creates a strong but lightweight frame, allowing for convenient usage, enhanced patient comfort and MRI compatibility. The system provides easy application, high mechanical stability and precise correction in all planes via unique web based software with radiographic navigation at www.smartcorrection.com.

Competitive advantages of the surgeon friendly, computer-assisted Smart Correction® external fixator include:

  • No reference ring

  • No master tab

  • No mounting parameters

  • Free strut placement

  • Faster calculation with advanced Radiographic Navigation Software

Smart Correction Components

Rings

  • Lightweight carbon fiber (8mm) and medical grade aluminum (6mm)

  • Parallel dual holes for optimal wire and screw positioning

  • Variable rings — Full Ring, 2/3 Ring, 1/3 Ring, Foot Ring between 105mm and 300mm diameter with 15mm increase

  • 1/3, 2/3, and Full ring options help surgeons create different frames for diaphyseal and/or metaphyseal bones

Struts

  • Lightweight struts manufactured from aluminum and titanium composition

  • Wide range of struts in 7 different sizes offer osseous compression and distraction between 55mm to 495mm

  • Safe mechanism employing ball and spring technique for prevention of unexpected length changes

  • Strut types; standard for foot and pediatric cases involving minimized lengths and express for acute adjustments or fracture reductions

Wires and Screws
The Smart Correction® Computer-Assisted Circular Hexapod External Fixator System offers different material and design options with variable wires and screws. Titanium screws prevent irritation for patients with nickel allergy and contributes to a lighter frame assembly.

Screws

  • Tapered Screws for better bone purchase

  • Trocar and/or Blunt Screws for faster drilling applications

  • Hydroxyapatite (HA) Coated Screws for improved bone integration in long term applications

Wires

  • Standard and/or Olive Wires provide a variety of surgical applications

    • Olive Wires are intended to hold bone fragments in place and maintain compressive force to prevent shifting of fragments and accelerate osteogenesis

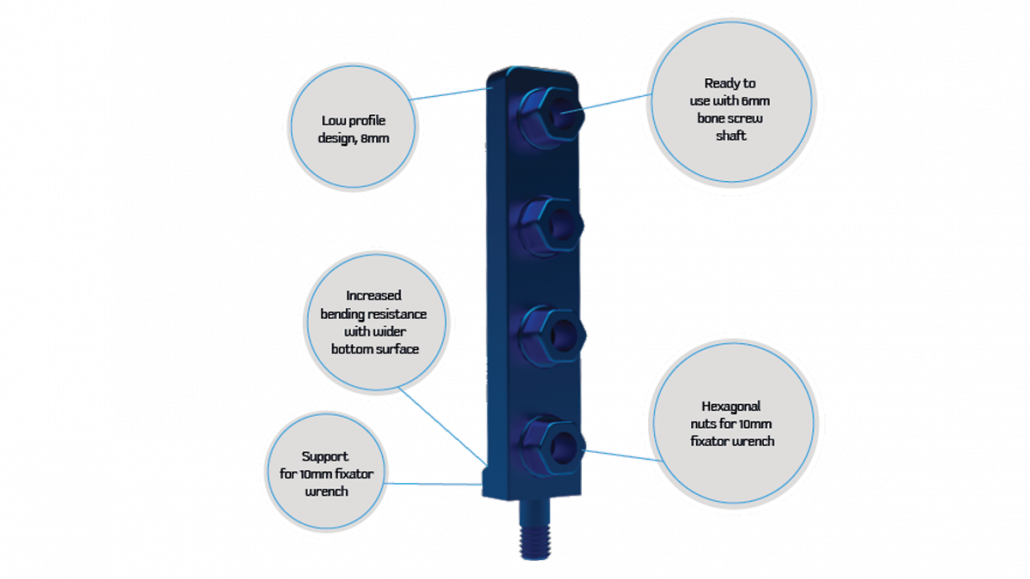

Wire and Screw Clamps
The Smart Correction® system offers a broad range of tools to assist in surgical procedures for wire and screw fixation, including:

  • Wire Clamp

  • Advanced Wire Clamp

  • Screw Clamp

  • Advanced Screw Clamp

  • EasyLock Screw Clamp

UniX Unilateral Fixator Compatibility

Smart Correction is fully compatible with UniX Unilateral Rail Fixator and Unix Unilateral Fixator family. This compatibilty provides easier solutions especially for the femur deformities.
